Mini Applicators

Tabletop Round Bottle Labeling Machine

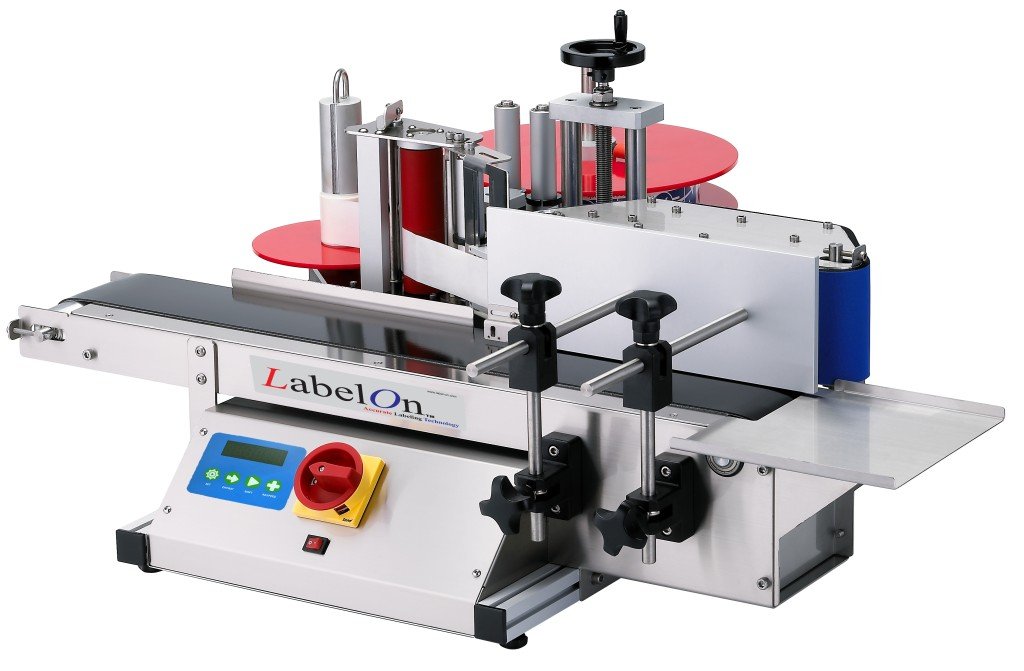

ADR-110 Tabletop Round Bottle Label Applicator

Can be widely used in various vertical round bottles. Suitable for small production.

Labeling Machine Features: ADR-110 Mini Labeler

  • Automated labeling for up to 85% wrap labels on straight-sided round bottles at speeds of 20-50 bottles per minute
  • No adjustments needed: built-in conveyor automatically matches label speed.
  • Labeling accuracy ± 1mm (± 1/25th inch)
  • Automatic label sensor detection with built-in label stop position auto-adjustment
  • Individual label height of 12 mm (½ inch) to almost 102 mm (4 inches) tall
  • Individual label width of 12 mm (½ inch) to almost 305 mm (12 inches) long
  • Compact footprint machine length 914 mm (3 feet)

Labeler Machine Specifications:

  • Footprint size 950mm (37 inches) long x 890mm (35 inches) wide x 450mm (18 inches) tall
  • Label Roll 75mm (3 inch core) inner diameter; 300mm (12 inch) outer roll diameter
  • Power 110v 50/60Hz
  • Label head stepper motor
  • Emergency safety Off button
  • SUS#304 stainless steel and aluminum alloy frame construction

Labeling Equipment Function:
  • For general round labeling
Tabletop Round Bottle Labeling Machine

Optional Accessories:

  • Transparent label sensor
  • Date coder
  • Pneumatic wrap station
  • Hot-stamp coder

Label applicator:

  • Powered by stepper motor
  • Max peeling speed at 13 meters/min
  • Latest label-gap sensation system with Leuze digital sensor, no need to change for different labels or products
  • KEYENCE Sensitivity product sensor
  • Labeling height(Y axis) changeable with indicator
  • X axis able to fine tune
  • Labeling accuracy: ± 1mm (± 1/25th inch) depend on bottle and label[column]

Apply label:

  • For non-clear adhesive label or pressure-sensitive label
  • Max standard label: (W)100 mm (or approx. 4 inches) (L)300 mm (or approx. 12 inches)
  • Inner label roll: 75mm (or approx. 3 inches)
  • Max outer label roll: 300mm (or approx. 12 inches)

Control System:

  • Program by microprocessor board, only one board with easy maintenance
  • Digital labeling parameters: start delay, peel length (and peeling speed , if no encoder)
  • Applicator switch

Wrap station:

  • Sponge belt driven by speed control motor
  • Applicator synchronized by encoder
  • Bottle diameter adjustment

Conveyor and frame:

  • Belt conveyor
  • Standard width: 95mm (or 3 3/4 inches)
  • Speed adjustable motor driven

LabelOn™ Benchtop Machines

Benchtop Labeling Machines Series

LabelOn™ is pleased to add to its range, a machine that will provide relief to those struggling to hand label Oval or Flat Side bottles.

Oval and Flat – Single and Double Sided Labeling

If you have requirements of 1000 pcs a week or more, the LabelOn™ Bechtop Flat and Oval 1 or 2 labels machine will pay for itself extremely quickly. It will also make your shelf presence look like you were using accurate packaging equipment 4 or 5 times more expensive than this unit.

We can even configure this machine (at point of manufacture) so that it achieves an astonishing feat – a single full wrap of an oval product!!

LabelOn Basic Oval Double Sided Better Pic

Labeling Machine Specifications:

Series: LabelOn™ Benchtop
Model: Flat and Oval One or Two Sides
Labelling accuracy: ±1.0mm
Typical Labelling speed: 8 to 15 Pieces / min
Product Height: 25mm to 250mm
Product Width: 25mm to 150mm
Product Thickness: 5mm to 125mm
Label Length: 12.5mm to 250mm
Label Height: 12.5mm to 150mm
Label Roll Core: ID Φ76 mm
Label Roll Diameter: OD Φ280mm
Machine Dimensions (L × W × H) 850mm×410mm×720mm
Power supply: 110/220V 50/60HZ
Total Power: 145W
Air Pressure (Mpa): 0.4 to 0.6Mpa





Oval and Flat Single and Double Sided
Full Wrap Oval



Top Labeler With or Without Feeders

Automated Standalone Top Labeler

Suitable for various flat products such as plastic boxes, DDR, note book, aluminum foil bags, etc. It can be connected to production line to increase production.

Labeling Machine Features:LabelOn Mini Round Top Labeler

  • Adjustable labeling height and angle.
  • Digital control panel controls labeling speed and labeling delay time.
  • Easy to set and read, user friendly Microprocessor and LED screen.
  • Automatic label sensor detection with built-in label stop position ,auto-adjustment
  • No adjustments needed: built-in conveyor automatically matches label speed.; with labeling spacer and counter.
  • Labeling accuracy ±1mm1/25th inch)

Labeler Machine Specifications:

  • Footprint size 950mm (37 inches) long x 580mm (23 inches) wide x 730mm (29 inches) tall
  • Label Roll 75mm (3 inch) core inner diameter; 300mm (12 inch) outer roll diameter
  • Power 110v 50/60Hz
  • Label head stepper motor, Labeling speed: 30~60 pcs / min (depends on containers and labels size)
  • High quality aluminum alloy and Stainless Steel construction.
Label Applicator Available Accessories :
  • Date coder
  • Transparent label sensor
Pouch Labeler or Bag Labeler
Lid Labeler
